SPECIFICATION
|
VALUE
|
|---|---|
|
Controller Wave Type
|
Square Wave Controller
|
|
Available Battery Voltage
|
48V,60V,72V
|
|
Available Motor Power
|
1KW – 2KW Nominal
|
|
Phase Peak Current ( Few Seconds )
|
210 A ( The bigger, the higher torque )
|
|
Continue Current
|
40A
|
|
Peak Current
|
80A
|
|
Available Motor Angle
|
60 / 120
|
|
Working Frenquency
|
15.6KHz
|
|
Working Efficiency
|
> 90 %
|
|
Available Battery Type
|
Lithium Battery; Lead Acid Battery
|
|
Available Motor Type ( With Hall Sensor )
|
Hub Motor; Speed Differential Motor; Mid Drive Motor
|
|
Default Throttle Working Voltage Range
|
0.8V – 3.8V
|
|
Number of MOSFETS
|
24 Fets
|
|
Case Material
|
Aluminum
|
|
Available Working Temperature
|
-30℃ to 100℃ ( As per surface of controller )
|
|
Temperature Protection
|
100 ℃
|
|
Brake Signal Input
|
0-5V; 12V (Customized )
|
|
Communication
|
Serial
|
|
Dimension
|
280* 117 * 60mm
|
|
Waterproof Grade
|
IP 65
|
Integrated Electrical Vehicle Motor Controller
Integrated Electric Vehicle Motor Controller propulsion systems comprise the opposite key set of components for BEVs, along side the battery power grid . The motor controller especially has evolved in recent years with the utilization of insulated gate bipolar transistors (IGBTs) as high-power switching devices in situ of the previously used MOSFETs (metal–oxide–semiconductor field-effect transistors). along side better integration of other components and reduced parts counts, Electric Vehicle Motor Controller have improved in performance and decreased in cost and complexity over the past few decades. Meanwhile, Integrated Electric Vehicle Motor Controller have also improved in terms of their torque and power density and energy efficiency characteristics
Electrical Vehicle system, Integrated Electrical Vehicle Motor Controller, Electrical Vehicle Motor Controller, Morth Consultancy Services

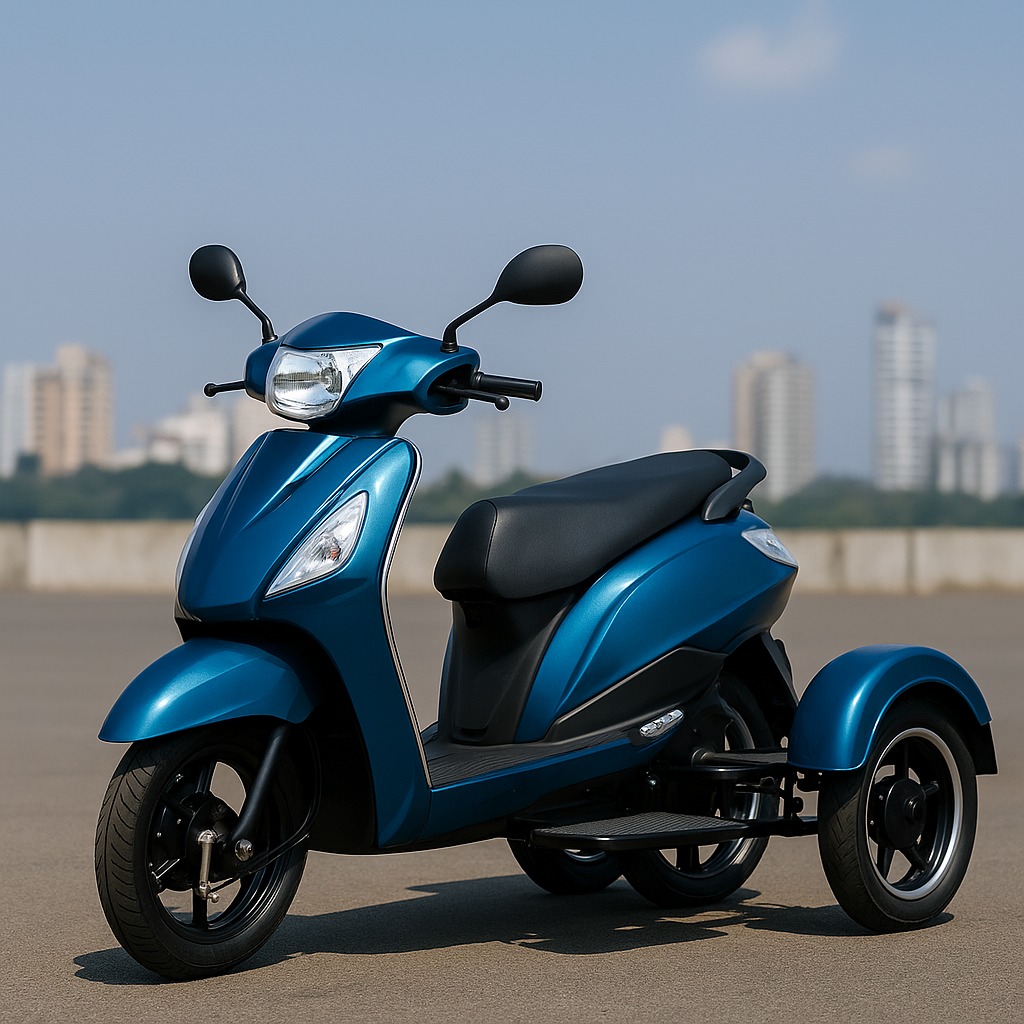

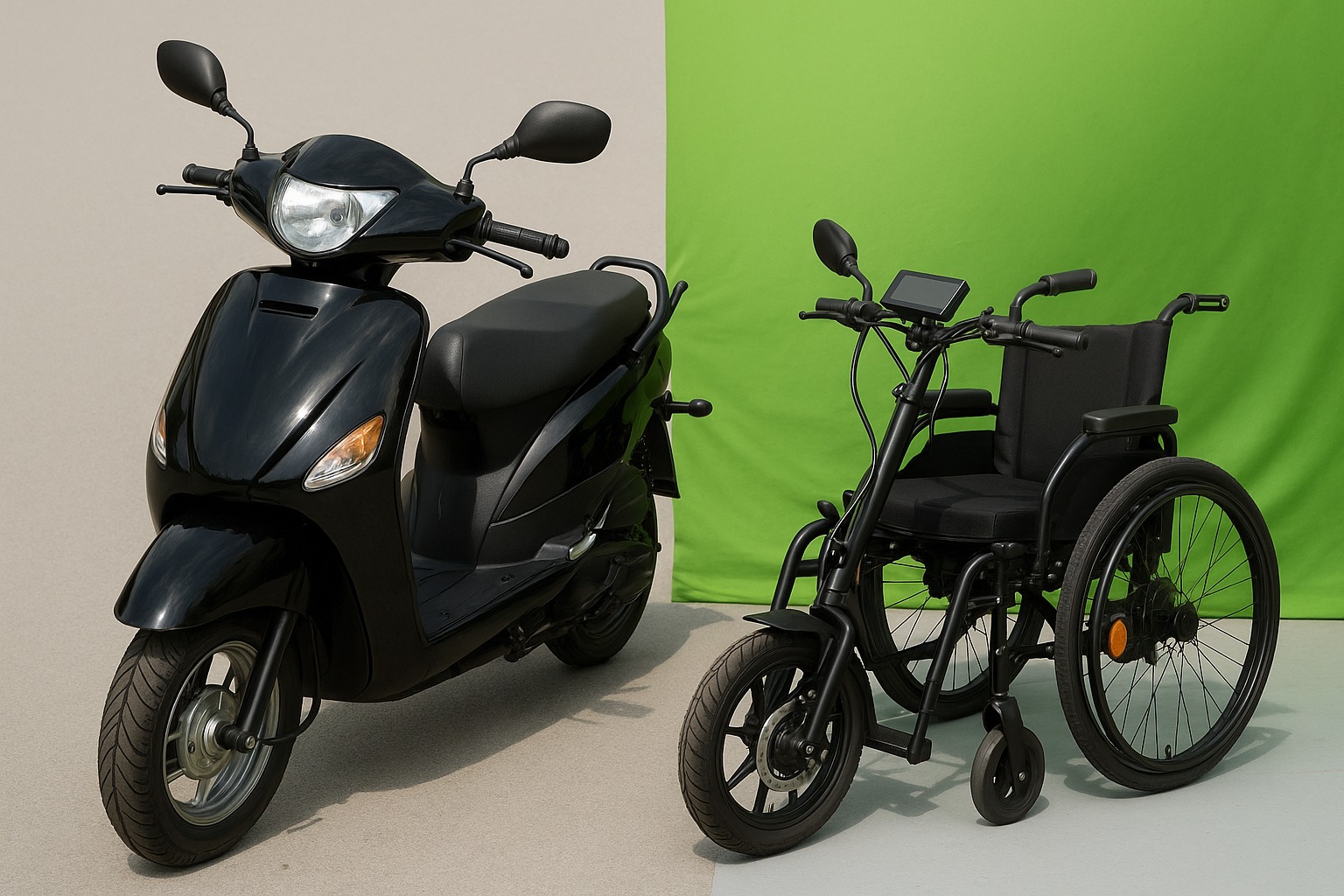

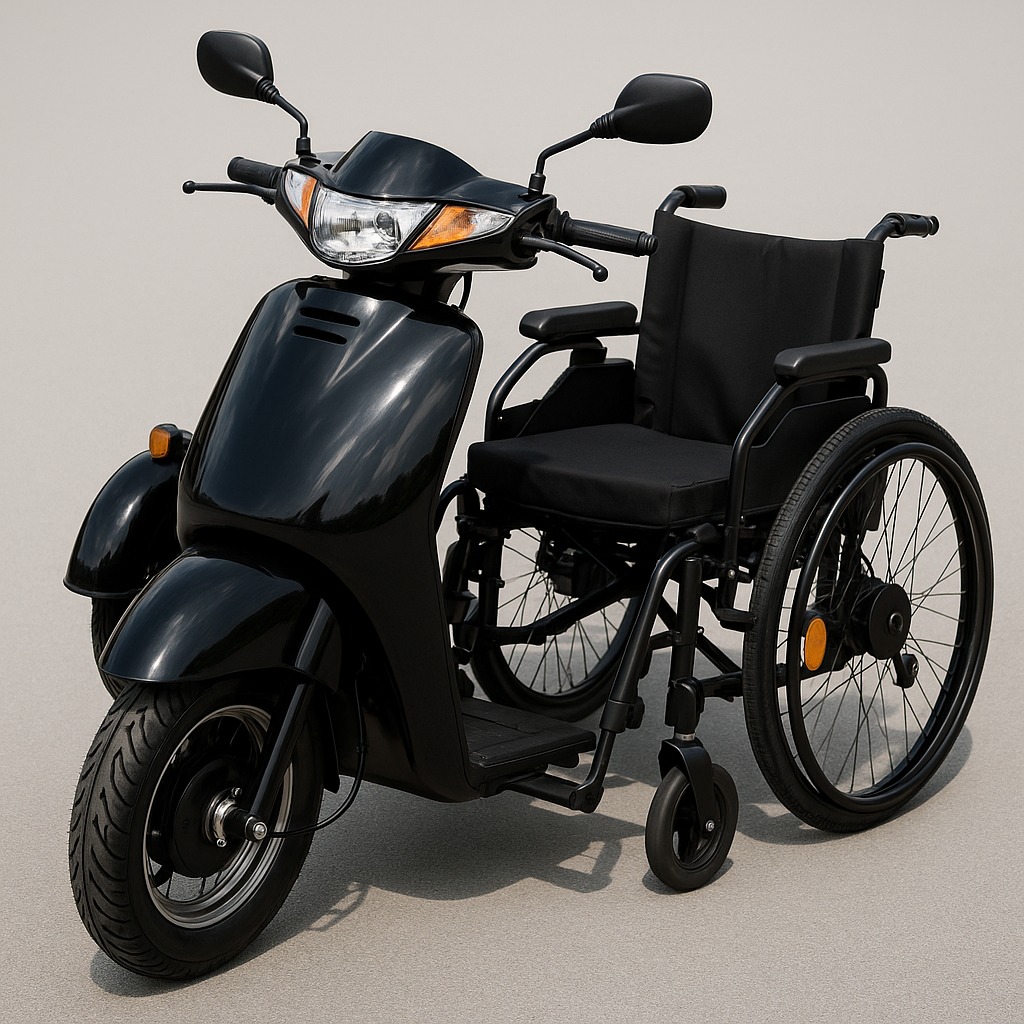

AIS-178 sets safety standards for adapted vehicles (L1, L2, L5M, tricycles):
